Description

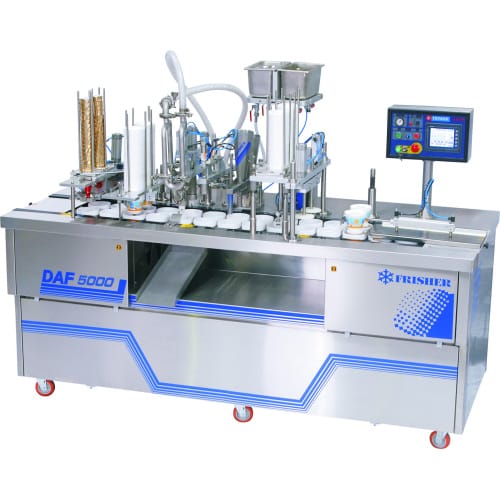

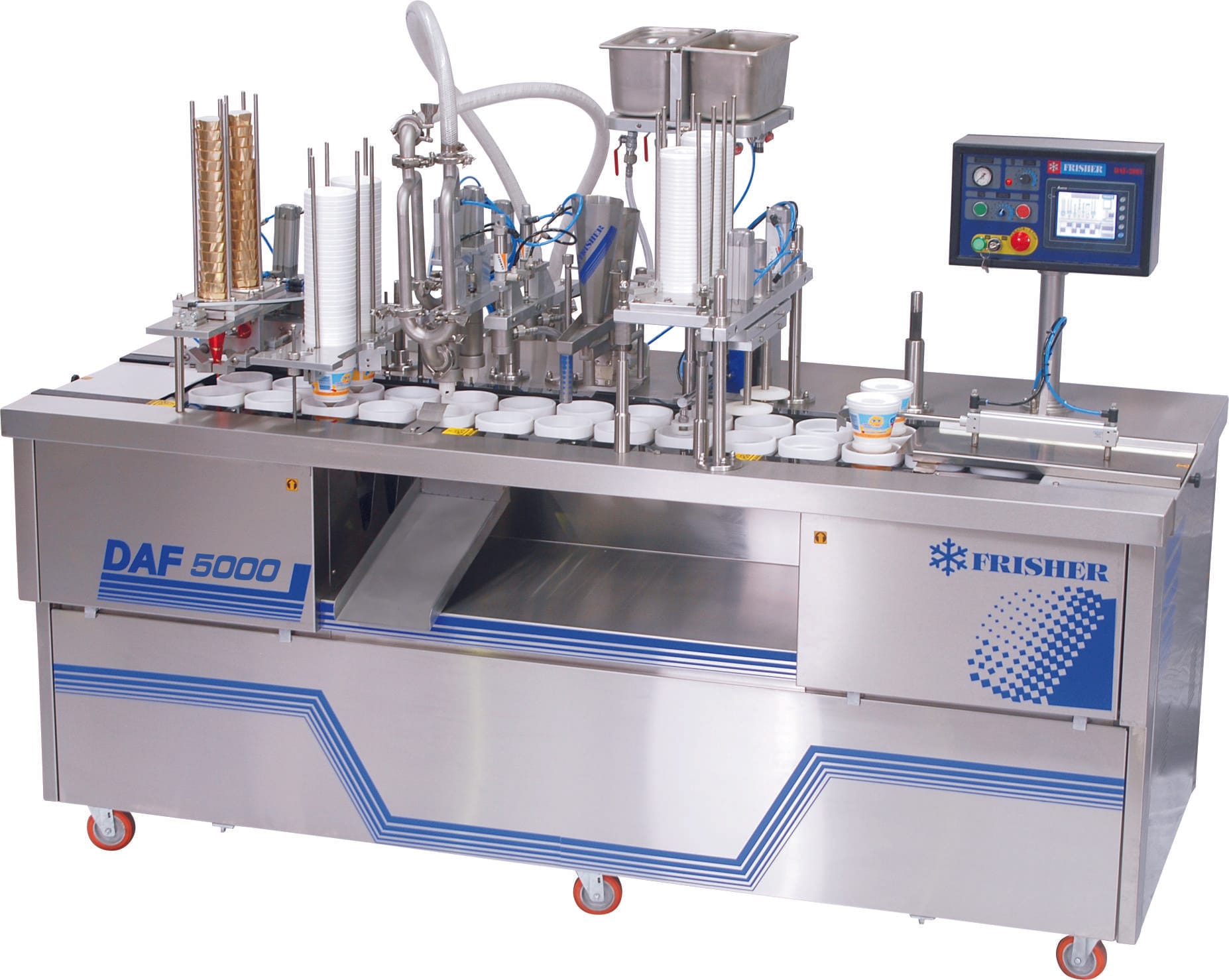

Automatic filling machines of pots and cones DAF 5000
The line of metering automatic DAF allow you to automatically fill in decorate, cover and extract up to 5000 pots/cones hour with up to 3 flavors, sourcing up to 3 continuous producers.
Very easy operation, thanks to its computerized controller connected to a touch screen.
In addition to its 7 seasons including the equipment DAF, they can incorporate two stations, extra, heat-sealing aluminum and date of packaging.
| Production capacity | Gearbox | Supply voltage | Commands | Structure | Automation | Functions | Conveyor belt | Measures (width,height,depth) | Net weight | Range of packaging |
|---|---|---|---|---|---|---|---|---|---|---|
| 5000 U/H | 1,5 HP with variable electronic speed | Single-phase or two-phase 220 V /50 hz/60 hz | Programmable logic controller (PLC) | Chassis structural coated in epoxy paint or stainless steel . Full covering in stainless steel quality AISI 304. Interior access with removable panels. | Drive tires with electronic command. Mechanisms and parts in stainless steel quality AISI 304 and anodized aluminum. | 7 stations: load container - spray chocolate - dosing - topping - seeded - close - extraction | Slats in stainless steel with accommodations in material P. T. F. E. adaptable according to measures and type of packaging. | 2360x1400x1690 mm | 600 Kg | Pots, cups, and cones from 75 ml to 1 liter |
